How to Fix a Circuit Breaker That Keeps Tripping: A Safe, Step-by-Step Guide

Does your circuit breaker keeps tripping every time you plug in that new appliance? You’re not alone. Electrical accidents at home injure or electrocute thousands of Americans each year.

A circuit breaker that trips right after reset is actually doing its job. Your home’s circuit breaker is a vital safety mechanism that cuts off electricity flow once it detects a fault. These protective devices prevent electrical fires, shocks, and damage to your home. A problematic circuit breaker isn’t just frustrating – it could point to a serious issue that might cause electrical damage or start a fire if you ignore it.

The reasons behind circuit breaker trips range from basic overloads to complex wiring problems. Circuits overload because you’re trying to use more electricity than they can handle. On top of that, most electrical systems face three common issues that trigger these safety shutdowns.

This piece walks you through safe ways to diagnose and fix your tripping circuit breaker. You’ll understand what causes these power interruptions and learn which problems you can fix yourself versus those that need professional help. Let’s get your electrical system working safely again!

What Causes a Circuit Breaker to Trip?

Circuit breakers work as silent guardians of your electrical system. They monitor dangerous situations around the clock. A tripping breaker might seem annoying when the lights go out, but it actually performs a significant safety function.

Understanding how breakers protect your home

Your circuit breaker stands as the primary defense in your home’s electrical system. It guards against three main electrical problems that could create dangerous situations:

  1. Overloaded circuits – This happens when you use more electricity than a circuit can handle. To name just one example, you might run multiple high-wattage devices like hair dryers, space heaters, and toasters at once on a single kitchen circuit. The extra power makes wires heat up and creates a potential fire hazard.
  2. Short circuits – These occur when a hot wire touches a neutral wire. The sudden surge of electricity with minimal resistance generates dangerous heat levels instantly. You might smell burning or see char marks near outlets in this case.
  3. Ground faults – Like short circuits, these happen when a hot wire touches a ground wire or any grounded part of the junction box. They become especially dangerous when you have moist environments like bathrooms or kitchens.

Each breaker contains a clever mechanism that spots these problems. Most use either a bimetallic strip or an electromagnet. These components stay stable during normal current flow. The excess current heats the bimetallic strip during an overload. This makes it bend and triggers the breaker to shut off. The electromagnetic component reacts to sudden surges during short circuits and cuts power immediately.

Modern homes often feature specialized breakers like Ground Fault Circuit Interrupters (GFCIs). These watch the balance of current flowing in and out of a circuit. They play a vital role in areas with water presence because they can stop deadly shocks.

Why repeated tripping is a warning sign

You might fix a circuit breaker that trips once by moving your electrical devices around. But a breaker that keeps tripping points to a serious problem that needs immediate attention.

A repeatedly tripping breaker left unchecked can cause:

  • Fire hazards – Resetting a tripping breaker without fixing the mechanisms creates a dangerous situation that might lead to an electrical fire.
  • Equipment damage – Irregular power supply can harm sensitive electronics and appliances.
  • Potential electrocution – This risk increases with ground faults where current might flow through someone standing on a wet surface.

A frequently tripping breaker might also show:

  • Old wiring that can’t keep up with modern appliance needs
  • Aging or faulty circuit breakers ready for replacement
  • Water damage or moisture affecting electrical components
  • Appliances that malfunction and draw too much current

Your circuit breaker sends you messages. It says “Something’s wrong here, and I’m cutting power to protect you.” Listening to this warning helps prevent repairs from getting pricey or dangerous situations from developing.

The next sections explore safe ways to diagnose and fix each type of circuit problem. We’ll start with checking circuit overload—the most common reason breakers trip.

Step 1: Check for Circuit Overload

Let’s get into the most common reason circuit breakers trip: circuit overload. This issue tops the list because it happens often and you can fix it yourself.

What is an overload and how it happens

Circuit overload happens when electrical devices draw more power than a circuit can handle safely. Your electrical circuit works like a highway with a specific capacity. Traffic jams (overloads) occur when too many vehicles (electrical devices) try to use it at once.

Overloads can develop two ways:

  • Gradually: You add more appliances to your home as time passes
  • Suddenly: You plug in too many power-hungry devices at the same time

The risks are serious. Circuit overloads cause more than 47,000 home fires each year, leading to hundreds of deaths and millions in property damage.

Watch for these warning signs:

  • Lights that dim or flicker
  • Outlets or switch plates that feel warm
  • Buzzing or crackling noises
  • Burning smells from outlets
  • Mild shocks when you touch outlets

How to test for an overloaded circuit

Your circuit breaker might keep tripping from overload. Here’s how to check:

  1. Turn off the problematic circuit at your breaker box to stay safe
  2. Unplug all devices on that circuit
  3. Reset the breaker by pushing it firmly to “off” then to “on”
  4. Reconnect devices one at a time, with pauses between each

The breaker will trip when you plug in the device causing problems. A multimeter gives you precise readings to check if the amps exceed the circuit’s rating.

Most homes have circuits rated for 15 or 20 amps. A 15-amp circuit safely handles up to 1,800 watts (1,440 watts for optimal safety). A 20-amp circuit manages 2,400 watts (1,920 watts for safety).

Tips to prevent overloads in the future

You can prevent circuit overloads by knowing your home’s electrical limits:

  • Spread out high-wattage appliances on different circuits
  • Keep power-hungry devices (refrigerators, microwaves, space heaters) on separate circuits
  • Unplug unused devices
  • Use power strips much of either and never with heat-producing appliances
  • Think over adding new circuits if overloads happen often

Note that power strips only add outlets—they don’t boost the circuit’s capacity. Connecting multiple strips together or using too many creates dangerous fire hazards.

An electrician can install extra outlets or circuits if problems persist. This upgrade does more than stop breakers from tripping—it protects your home from electrical fires.

Step 2: Look for Short Circuits

Your circuit breaker might keep tripping even after you’ve checked for an overload. The next thing to suspect is a short circuit—a serious electrical issue that needs careful handling.

Signs of a short circuit

A short circuit happens when a hot wire touches a neutral wire or a grounded metal object, which creates an unwanted path for electricity. You’ll spot these warning signs:

  • Burning smells or visible smoke near switches, outlets, or appliances
  • Sparks when plugging in devices or from the outlet itself
  • Buzzing or humming sounds from outlets or switches
  • Burn marks or discoloration on outlets, switches, or plugs
  • Warm or hot outlets that you can feel
  • Repeated breaker tripping with just a few devices connected

The circuit breaker detects this dangerous surge of current and trips to protect your home. Everything connected to that circuit—lights, TVs, computers—will shut off right away.

How to isolate the faulty device or outlet

You can find the source of a short circuit by following these steps:

Start by turning off power to the affected circuit at your breaker box. Make sure the power is off with a voltage tester or multimeter set to AC volts. Your safety comes first—never check a possible short while the power runs.

Look at all outlets and devices on that circuit. Search for any physical damage such as burnt areas, melted plastic, loose connections, or exposed wires. Take off outlet and switch covers (power must be off!) to look at internal wiring for damage.

Finding the exact source requires these steps:

  1. Unplug all devices from the circuit
  2. Reset the breaker to see if it stays on
  3. Plug devices back in one at a time until the breaker trips again

A multimeter helps find shorts by testing connections that shouldn’t be connected. You’ve likely found your short if you see very low resistance readings where they should be high.

Why short circuits are dangerous

Short circuits create more than just inconvenience—they’re serious safety hazards. The US Fire Administration reports that electrical problems caused 24,200 fires in 2021, leading to 295 deaths and $1.2 billion in property damage.

These shorts become dangerous because they create a sudden, dramatic drop in electrical resistance. This allows huge amounts of current to flow through an unwanted path. The intense heat builds up almost instantly and can:

  • Melt wire insulation and create more exposed conductors
  • Start fires by igniting nearby flammable materials
  • Damage electrical equipment throughout your home
  • Cause electrical shocks or even death if someone becomes part of the circuit

A short circuit doesn’t always show up with obvious signs. It might come and go, making it hard to spot until serious damage occurs.

The safest choice often involves calling a licensed electrician if you can’t easily find and fix the short circuit—or if you notice severe warning signs like burning smells or sparks. Just turn off the circuit and get professional help.

Step 3: Identify Ground Faults

At the time your circuit breaker keeps tripping after you’ve ruled out overloads and short circuits, a ground fault might be the culprit. This dangerous electrical condition can occur in specific areas of your home.

What is a ground fault?

A ground fault occurs when electricity strays from its intended path and creates an unplanned shortcut to the ground. The technical definition describes it as an unexpected contact between an energized conductor and ground or a grounded equipment frame. This differs from a standard short circuit because the current flows through the grounding system.

Studies show ground faults make up about 98% of all electrical faults. These problems typically result from:

  • Damaged insulation caused by wire pulls through rough-edged raceways
  • Exposure to moisture (22.5% of all faults)
  • Damage from tools or rodents (18%)
  • Exposure to dust (14.5%)
  • Pinched wires during installation

The biggest danger of a ground fault lies in its ability to send electrical current through someone’s body as it seeks ground, which can lead to severe shock or electrocution.

Where ground faults usually occur

Ground faults commonly show up where electricity and water meet. You’ll find them in:

  • Bathrooms, kitchens, and laundry rooms
  • Outdoor outlets and fixtures
  • Basements and crawl spaces
  • Areas within 20 feet of swimming pools or spas
  • Garages and workshops

These locations become especially dangerous because water conducts electricity so well, which increases shock risk. The National Electrical Code requires special protection in these areas for this exact reason.

Spotting intermittent ground faults can be trickier than finding constant ones. The breaker might trip at certain times of day – this pattern can help locate the source.

How GFCI outlets help prevent shocks

Ground Fault Circuit Interrupters (GFCIs) protect against these dangerous conditions. These devices watch the electrical flow and compare what goes to equipment versus what comes back. They shut off power in 1/40 of a second if they detect even a tiny 5-milliampere difference.

GFCIs react faster than electricity can harm the human heart. Since their addition to the 1971 National Electrical Code, these devices have cut electrocutions by 81% overall and reduced consumer product-related incidents by 95%.

You can spot GFCI outlets by their “test” and “reset” buttons. Monthly testing ensures safety – just press the test button. Replace the outlet if it doesn’t immediately cut power.

Don’t just keep resetting the breaker if ground faults persist. Try unplugging devices one at a time to find the problem. Continuing ground faults mean it’s time to call an electrician to prevent potentially deadly shocks.

Step 4: Rule Out Faulty Breakers or Appliances

Your circuit breaker might trip repeatedly not because of circuit problems but because the breaker or connected appliance has failed.

How to tell if a breaker is bad

Circuit breakers usually work for 30-40 years, but failure can happen sooner. A failing breaker shows these signs:

  • Refuses to stay reset after tripping
  • Releases a burning smell
  • Becomes hot to touch
  • Displays visible damage or scorch marks
  • Makes buzzing or humming sounds
  • Creates flickering lights throughout your home

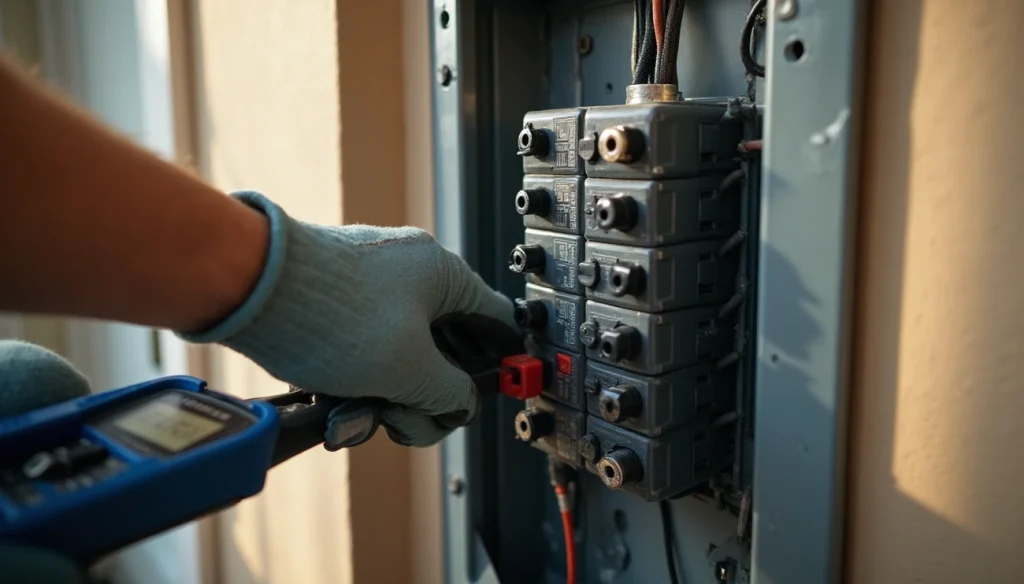

A multimeter helps test your breaker’s condition. Put the red probe on the breaker screw and black probe on the neutral bar. The breaker has failed if a single-pole breaker shows 0V.

Appliance issues that can cause tripping

Defective appliances pull too much current. Old appliances with worn-out insulation often make breakers trip. The breaker trips each time you use a specific device – this points directly to an appliance problem.

Hair dryers, refrigerators, space heaters, and washing machines top the list of usual suspects. These high-wattage devices create powerful startup surges.

When to replace a breaker or device

Your safety demands immediate breaker replacement if you see frayed wires, hot outlets, shocking outlets, burning smells, or hear crackling sounds. These signs warn of serious danger.

Stop using appliances that repeatedly trigger your breaker. Ongoing problems with breakers or appliances need expert evaluation quickly. Electrical issues create fire hazards if left unchecked.

Conclusion

A tripping circuit breaker needs a step-by-step approach to fix it. This piece shows you how to spot three biggest problems: overloaded circuits, short circuits, and ground faults. On top of that, it teaches you ways to test faulty breakers and problematic appliances.

Your safety comes first when dealing with electrical problems. You must turn off power at the main breaker before checking any electrical issue. Circuit breakers trip with good reason too—they keep your home safe from fires and other dangerous situations.

Simple overload issues can be fixed by spreading high-wattage appliances across different circuits. But short circuits and ground faults point to more serious problems. You’ll need professional help if you smell burning, see damage, or if the breaker trips right after reset.

An electrician’s services might get pricey at $75 to $150 per hour, but this cost prevents fire damage and protects your family. Local building codes might also say you need certified professionals for specific electrical repairs.

Your electrical system’s age makes a big difference. Older homes with outdated wiring often need complete updates to handle today’s appliance power needs. A local electrician can tell if your system needs more than just new breakers.

Think over adding GFCI outlets in wet areas like kitchens, bathrooms, and outdoor spaces. These special outlets give extra protection against dangerous ground faults and have saved many lives since they first came out.

By doing this troubleshooting guide, you can fix many common electrical issues safely. Don’t hesitate to call a professional when in doubt—your home’s electrical system isn’t the place to take chances.
